iXROVER R82 Toucan

R82 Toucan

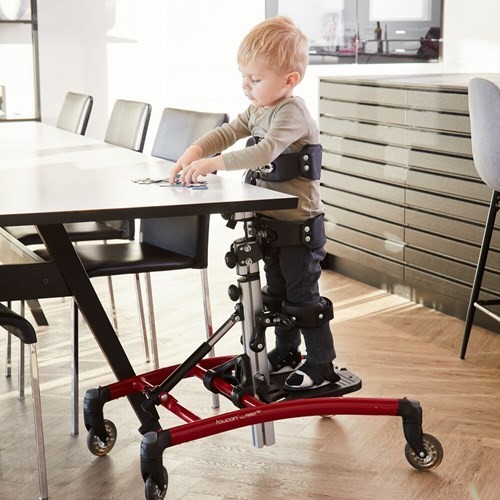

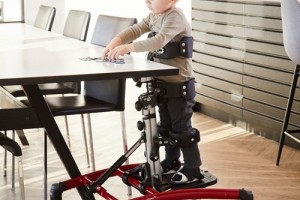

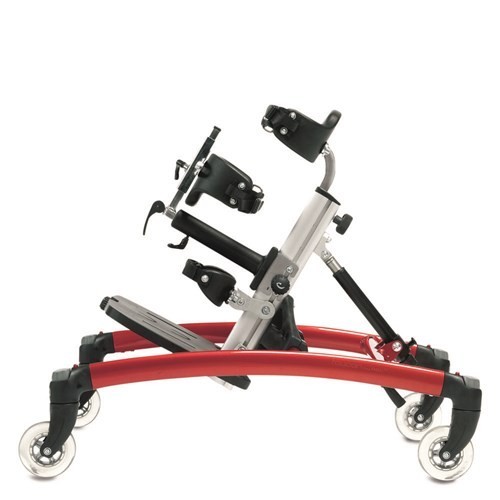

The Toucan is a standing frame that supports an upright or prone standing position.

Toucan Standard Features:
● Frame
● Castors
● Wheel Locks
● Center Bar
● Tilt Wind System

Toucan Standing Frame, Red $1,330
Toucan Standing Frame, Blue $1,330
Toucan Standing Frame, Blue $1,330
Toucan Standing Frame, Silver $1,481
Toucan Standing Frame, Silver $1,481

  • manufacturer R82
  • product code R82 Toucan
  • Availability: in stock (10pcs)
  • Delivery: Dispatch: next business day
Price $1,330.00
- +

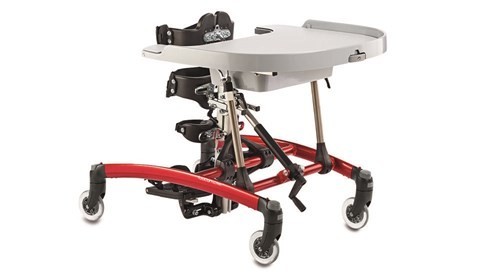

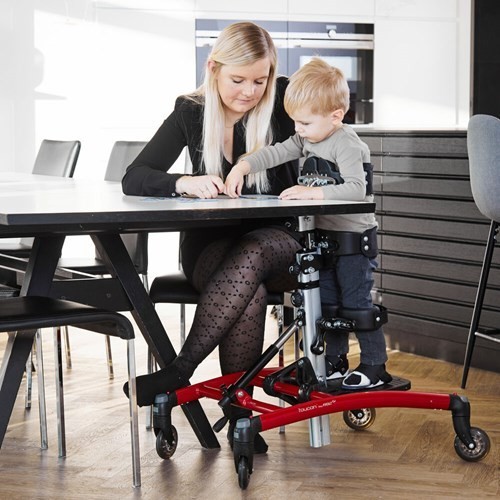

The Toucan standing frame comes with soft curves and smart colours.

The distance between the side bars of the frame allows most wheelchair or static seating system to go in between, allowing sit to stand transfer. Furthermore, the foot plate can be position as low as 60 mm above the floor, which makes it possible for most of the target users to step into the Toucan.
The Toucan is available in five sizes and suitable for children from approximately 870 mm (34 1/4“) to 1800 mm (70 3/4“). The max. user mass is 70 kg (154 lb).

FEATURES

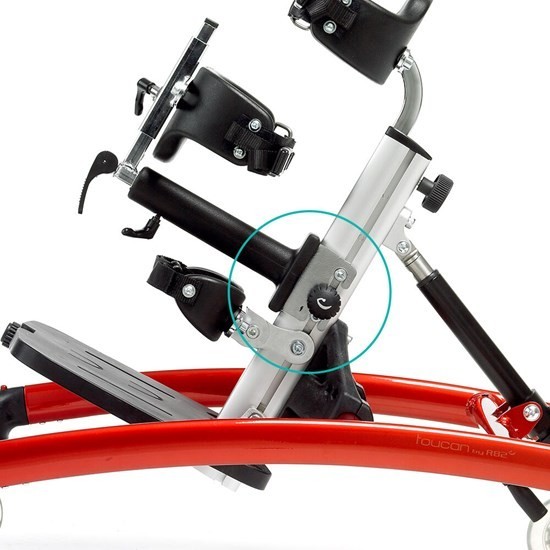

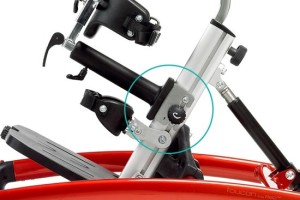

Prepared for accessories

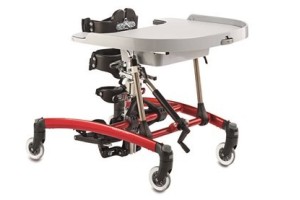

All sizes of Toucan can be equipped with all sizes of accessories. The Toucan is designed with slots in the centre bar for easy and simple mounting.

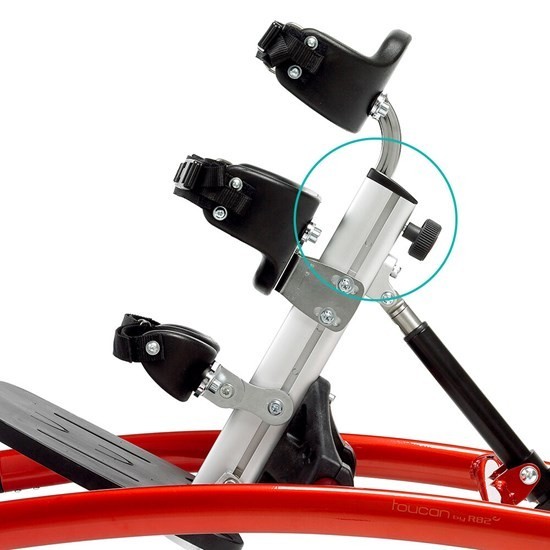

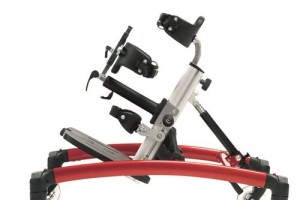

Angle adjustable centre bar

The Toucan has easy and steady angle adjustment making it possible to obtain the optimum standing position.

Handle with lock

The handle for angling the centre bar is equipped with a security lock. Pull out the lock whilst turning the handle to change the angle.

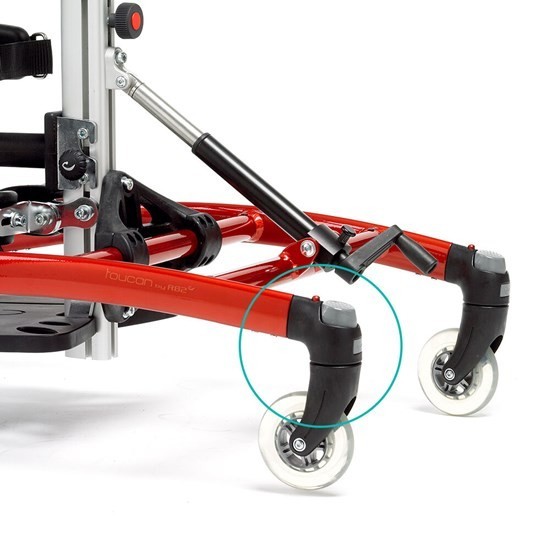

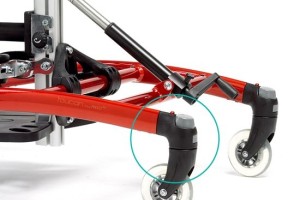

Castors with locks

All four castors are equipped with locks securing the Toucan for stability. The wheels are very easy to manouvre making it easy to move the Toucan around.

Options

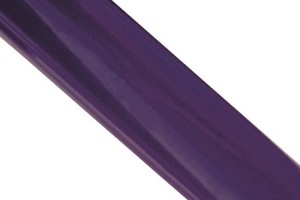

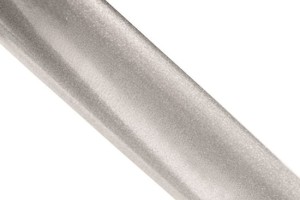

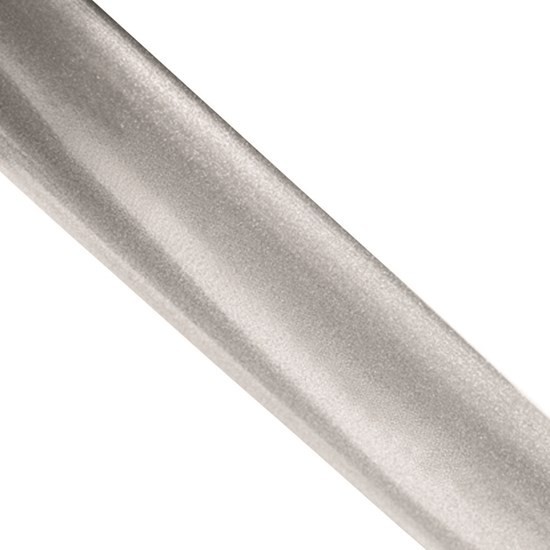

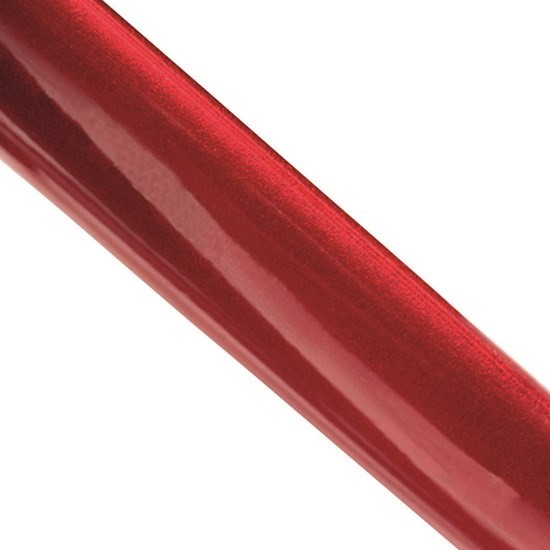

Frame color

  • Red for size 1
  • Blue for size 2+3
  • Silver for size 4+5

Accessories

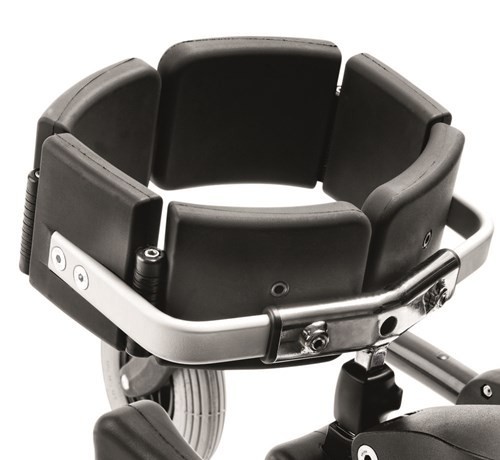

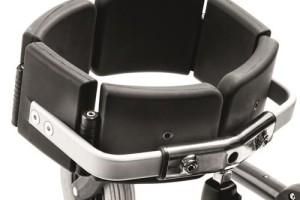

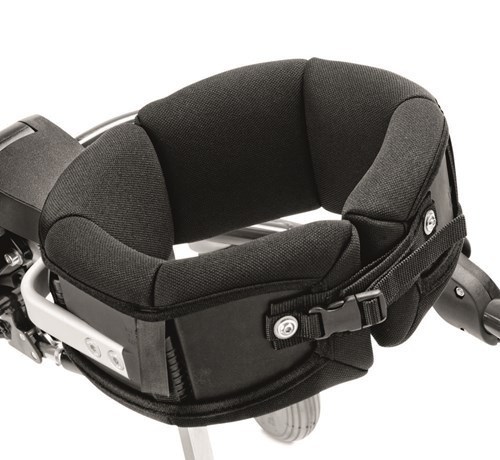

Chest support and cover - Postural Support

For support of the upper body. Cover for added comfort on chest support.

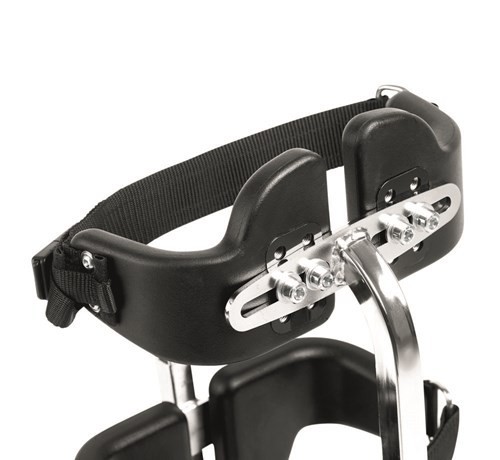

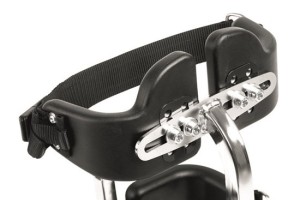

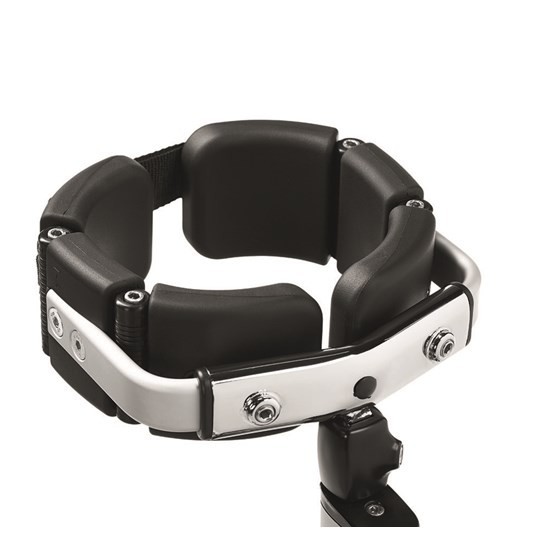

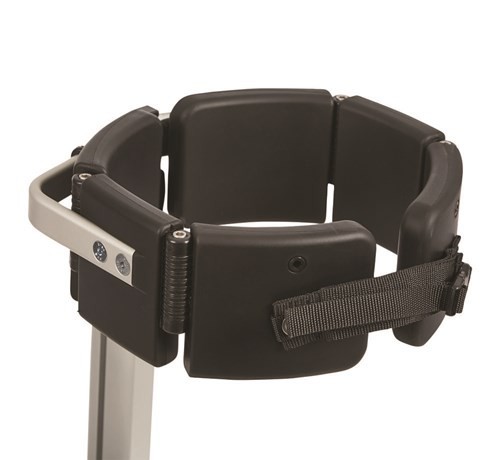

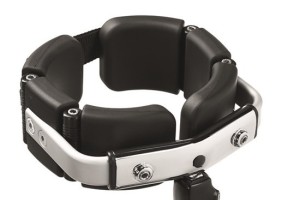

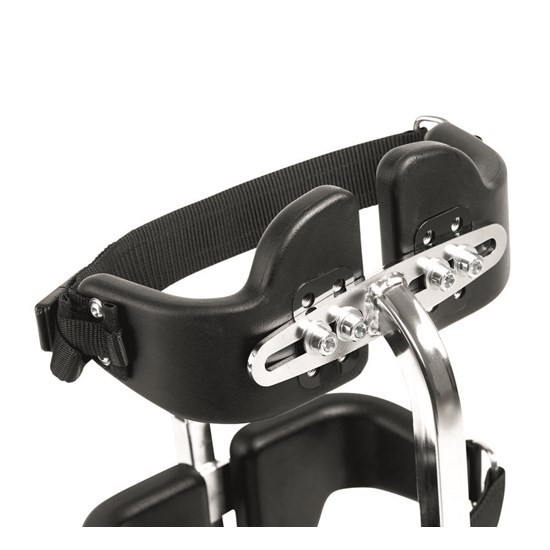

Chest support - Postural Supports

For support of the upper body. The chest support pads can be turned upside down.

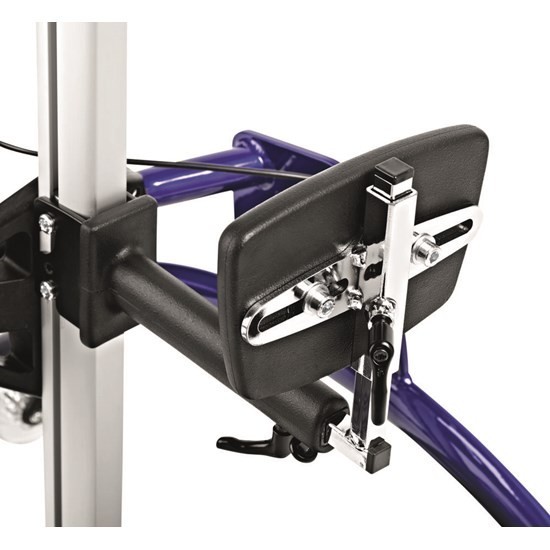

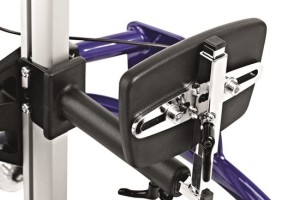

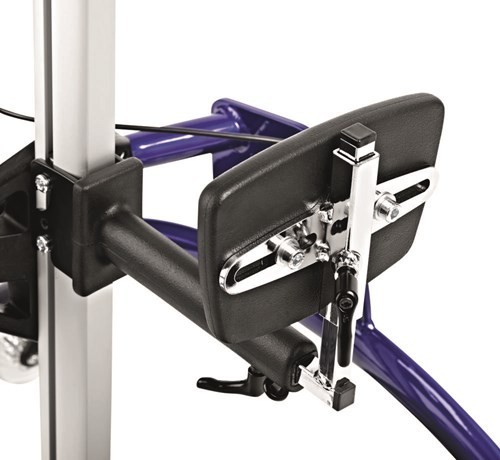

Back support

Stabilizes the pelvis from behind in the prone or upright standing position.

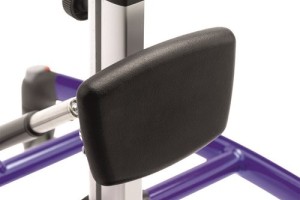

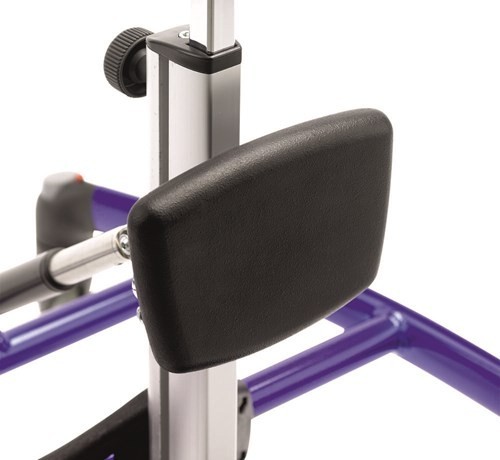

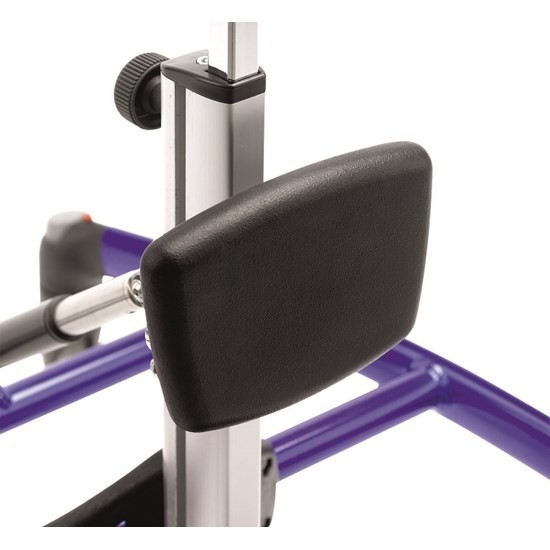

Abdominal support

Support the child's trunk position. The abdominal support pad can be turned upside down.

Variants

Size 1
Size 2
Size 3
Size 4
Size 5
Item number 861001 861002 861003 861004 861005
Angle, center bar (°) 0-30 0-30 0-30 0-30 0-30
Foot plate angle (°) 15 - (-10) 15 - (-10) 15 - (-10) 15 - (-10) 15 - (-10)
Height from floor to foot plate (mm) 60 60 60 60 60
Length (mm) 750 880 880 1110 1110
Length, centre bar (mm) 450 500 700 800 1000
Mass device (kg) 7.5 8.5 9 10.5 10.75
Maximum rated load (kg) 39.5 50.5 1.3 72.5 82.75
Maximum user mass (kg) 30 40 50 60 70
Maximum user weight (kg) 30 40 50 60 70
Overall height (mm) 670-870 720-1010 970-1230 1040-1340 1240-1540
Overall width (mm) 560 630 630 700 700
Static stability downhill (°) 5 5 5 5 5
Static stability sideways (°) 5 5 5 5 5
Static stability uphill (°) 5 5 5 5 5
User height: floor to axil (mm) 340-700 540-900 740-1100 910-1210 1110-1410
